4698F
Spiderbond
3506.9190
| Quantity: | |
|---|---|
PO Film Adhesive
4698F
Description
Spiderbond 4698F web adhesive is a film form hot melt adhesive produced based on Modified polyolefin. Film adhesives handle like a fabric facilitating both intermittent and continuous processes. The TPU film is available in a range of thickness from 15 to 250 micron.
4698F film adhesive is based upon high performance modified polyolefin. This product has low melting range, low working temperature, fast crystallization speed and high peel strength, suitable for bonding plastics, artificial leather, fabric, fiber and other materials that need to be used at a lower temperature.
Advantages
VOC free adhesive in easy handle film form.
Strong bonding strength and good anti-washing performance.
Material properties:
Property | Detail or Method | Specification |
Appearance | By eye | Transparent or translucent film |
Base | Modified Polyolefin | |
Thickness | micron | 15-250, tolerance ±10% |
Melting range | DSC, °C, GB/T 19466.3 | 70-100 |
Melt Flow Index | g/10 min at 160°C， 2.16kg | 160-240 |
Density | g/cm³, GB/T13354-1992 | 0.85-1.0 |
Water Wash Temperature | °C | 40 |
Packaging:

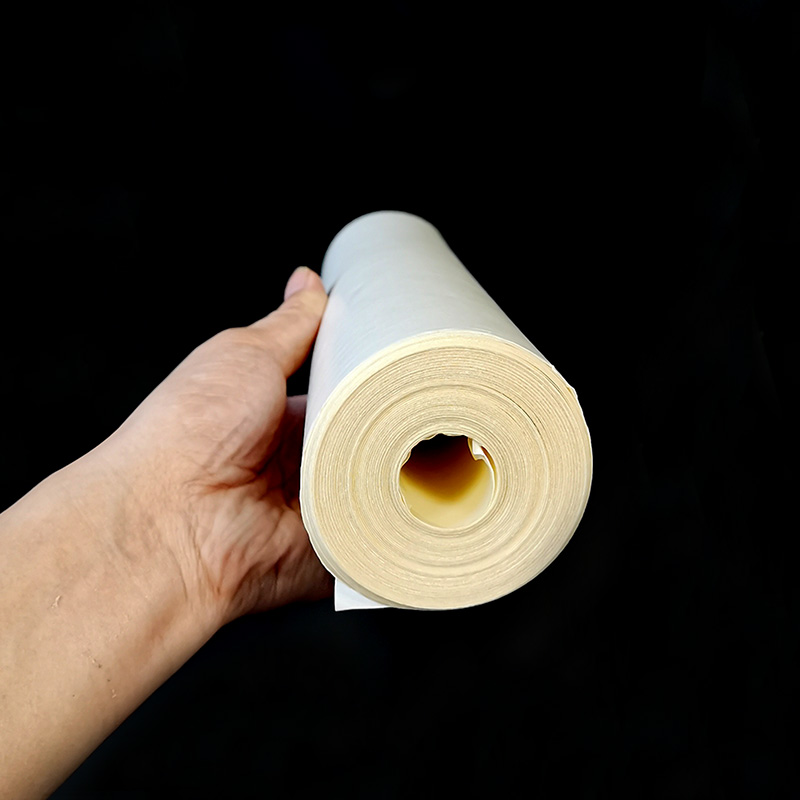

4698F film adhesives are sold in roll form, pack in carton.
For further packaging details please contact our salesperson.
Shelf Life:
4698F should be shipped and stored at temperatures 10-35°C. The shelf life of 4698F is one year since production date under these conditions and original package.
Directions for Using:
4698F can be activated with any of the following techniques: electric fusing press, heated rolls, heated air, radiant heat, or steam press. Dry heat activation recommend above 80°C.
Bonding Surface Preparation: Bonded surfaces need to be clean, dry and free of grease.
Preparation: Set the appropriate temperature for the glue applicator/roller, too high temperature will cause the film to decompose. According to the structure of the equipment, it is generally enough to adjust the process reasonably to reach 120 °C. In general, preheating the material to be bonded is more conducive to material bonding, especially in cold weather.
It is recommended to use it once after opening the package.
In order to achieve the best bonding effect, the bonded product should preferably be cold-pressed and stored at a suitable temperature (for example: 25°C). In general, the bonding strength can be achieved by cooling to room temperature after bonding. Generally, it is considered to be stable after 1 hour, and the best bonding strength is achieved after 24 hours. Due to the difference between the adhered material and the gluing equipment, please select the appropriate thickness of the adhesive film and adjust the process parameters appropriately.
Health & Safety Precautions
The Safety Data Sheet should be consulted for proper handling, clean up and spill containment before use. Keep containers covered to minimize contamination.
Our Service:
1. Samples send to you free of charge.
2. Delivery on time, quality according to customer request.
3. OEM, ODM is welcome.
4. Support small wholesale, retails, Any inquires will be replied within 24 hours.
